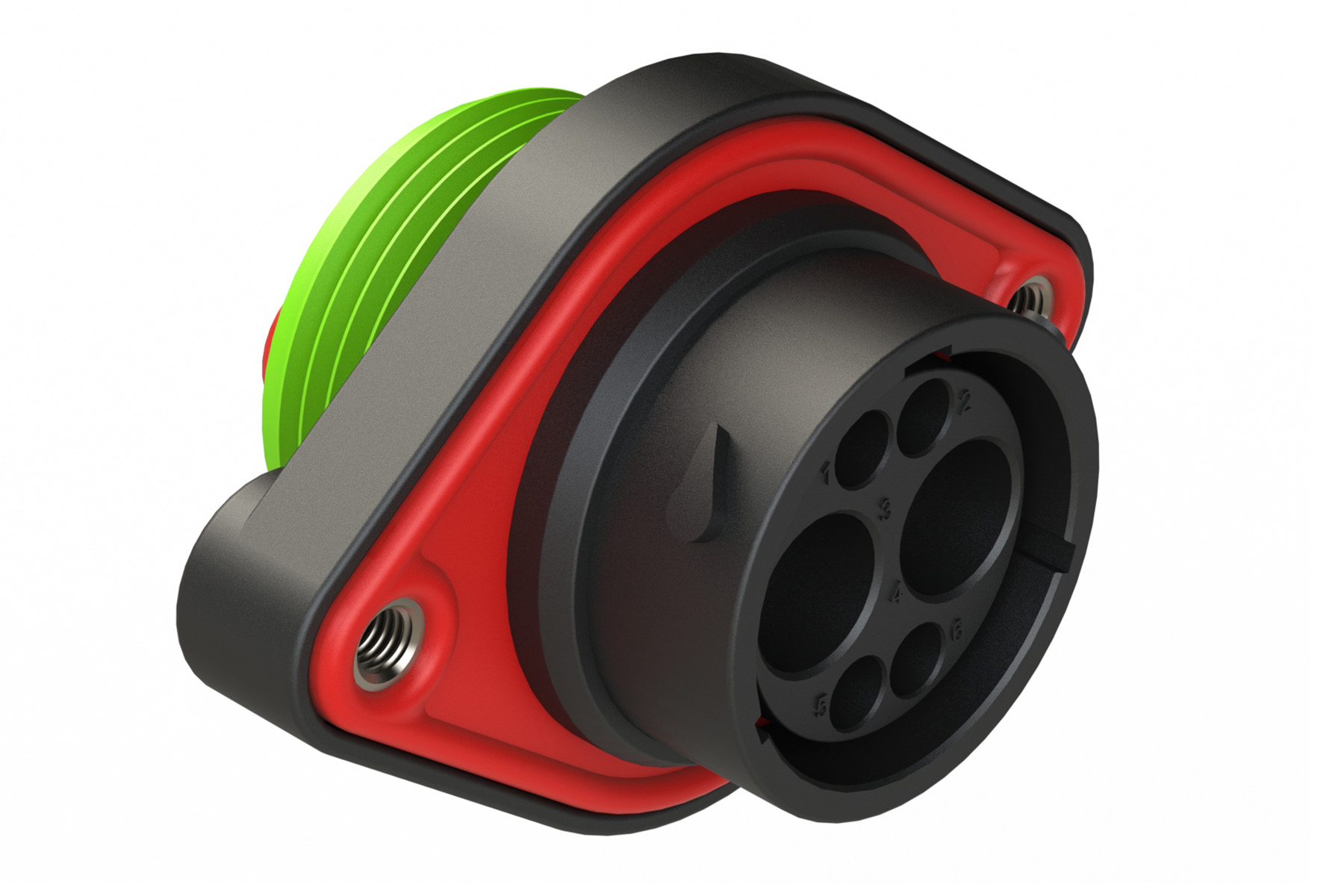

Amphenol AHDP02-18-06PN-WTA

Size: 18
No.of Positions: 6
Contact Size(s): 4,16
Contact Type (Pin/Socket): Pin
Contacts Included?: FALSE
Gender: Male (Standard)
Wire Range: 6 AWG (16.0-13.0mm²), 14-20 AWG (2.0-0.5mm²)
Amperage: 100A/13A
Housing Material: Thermoplastic
Voltage: 250 V
Operating Temperature: -55°C to +125°C
Color: Black
IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition), IP69K (in mated condition)
Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @1500 volts AC
Insulation Resistance: 1000 Megaohm min @ 25°C
Seal Material: Silicone Rubber
Seal Diameter: 2.54mm (.100″) – 3.40mm (.134″) / 6.63mm (.261″) – 7.42mm (.292″)
Seal Color: Green
Rear Seal Type: Normal
RoHS Compliant?: TRUE
Mating Cycle Durability: >100
Mating Part*: AHDP06-18-06S* (* = SEAL TYPE) (NOT C030 OPTION)
